CAMSHAFT
Removal
  • 1. Disconnect battery ground cable
  • 2. Remove crankshaft pulley - Refer to removal procedure for Crankshaft Pulley in this manual
  • 3. Remove timing belt- Refer to removal procedure for Timing Belt in this manual
  • 4. Remove cylinder head cover (L. H.) Left Head (driver side) - Refer to removal procedure for Cylinder Head Cover Right Head (L. H.) (drivers side)
  • 5. Remove cylinder head cover (R. H.( Right Head) (passenger side) - Refer to removal procedure for Cylinder Head Cover (R. H.) in this manual
  • 6. Remove twenty fixing bolts from inlet and exhaust camshaft bracket on one side bank, then camshaft brackets.
  • 7. Remove camshaft assembly
  • 8. Remove fixing bolt for camshaft drive gear pulley
  • 9. Remove three fixing bolts from camshaft drive gear retainer, then camshaft drive gear assembly

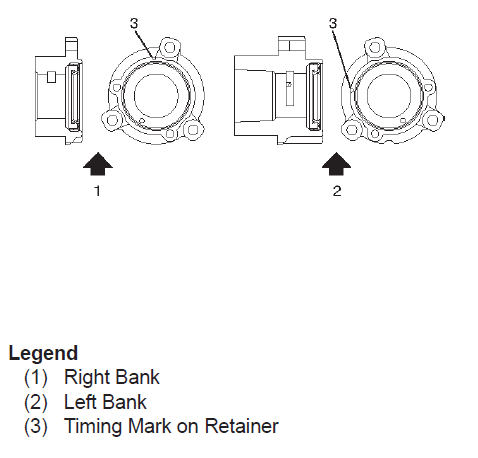

Retainer Assembly

Camshaft Drive Gear Retainer Assembly

Installation
  • 1. Install camshaft drive gear assembly and tighten three bolts to the specified torque. Torque: 10 N.m (1.0 Kg.m/89 lb. in.)
  • 2. Tighten bolt for camshaft drive gear assembly pulley to the specified torque. Torque: 98 N.m (10.0 Kg.m/72 lb. ft.)
  • 3. Tighten sub gear setting bolt.

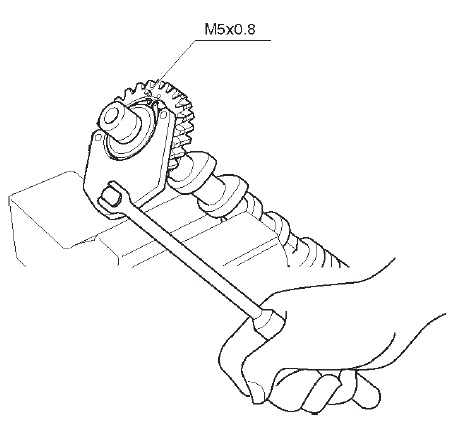

  • 1. Use the 5-8840-2443-0 gear spring lever to turn sub gear to right direction until it aligns with the M5 bolt hole between camshaft driven gear and sub gear.
  • 2. Tighten the M5 bolt to a suitable torque to prevent the sub gear from moving.
  • 4. Install camshaft assembly and camshaft brackets, tighten twenty bolts on one side bank to specified torque.
  • 1. Apply engine oil to camshaft journal and bearing surface of camshaft bracket
  • 2. Align timeing mark on intake camshaft (one dot for right bank, two dot for right bank, two dots for left bank) to timing mark on camshaft drive gear (one dot).

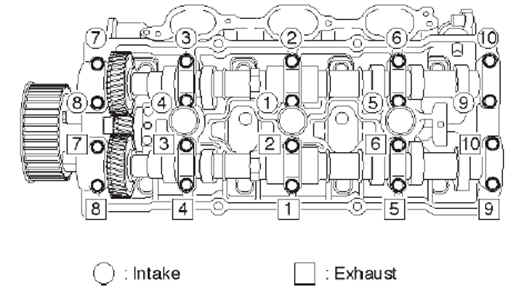

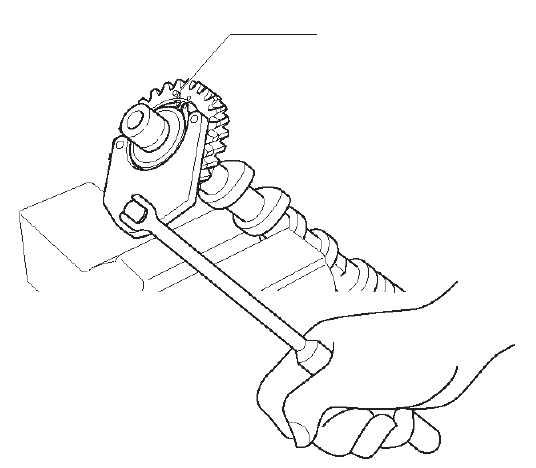

The photo on the left shows the cam tool. The photo far right showing the cylinder head and shows the order of how to tighten the twenty bolts, each bolt is in numerical order on one side bank as shown in the illustration Torque: 10 N.m (1.0 Kg.m/89 lb. in.)

Below Photo: Camshaft M5 Bolt

Head bolt numbered

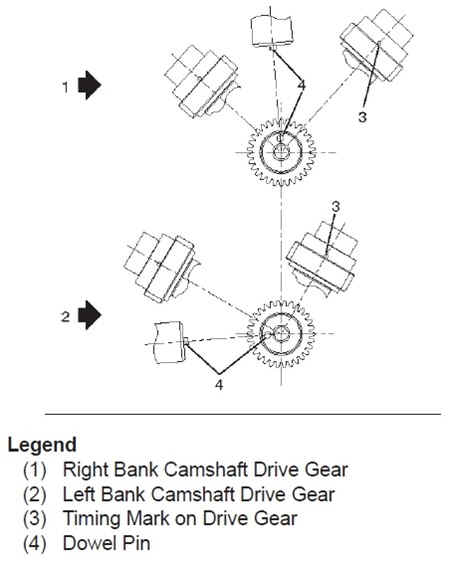

Photo above shows Camshaft Right & Left Bank Timing Marks Photo above Shows Camshaft Alignment Marks on Drive Gear

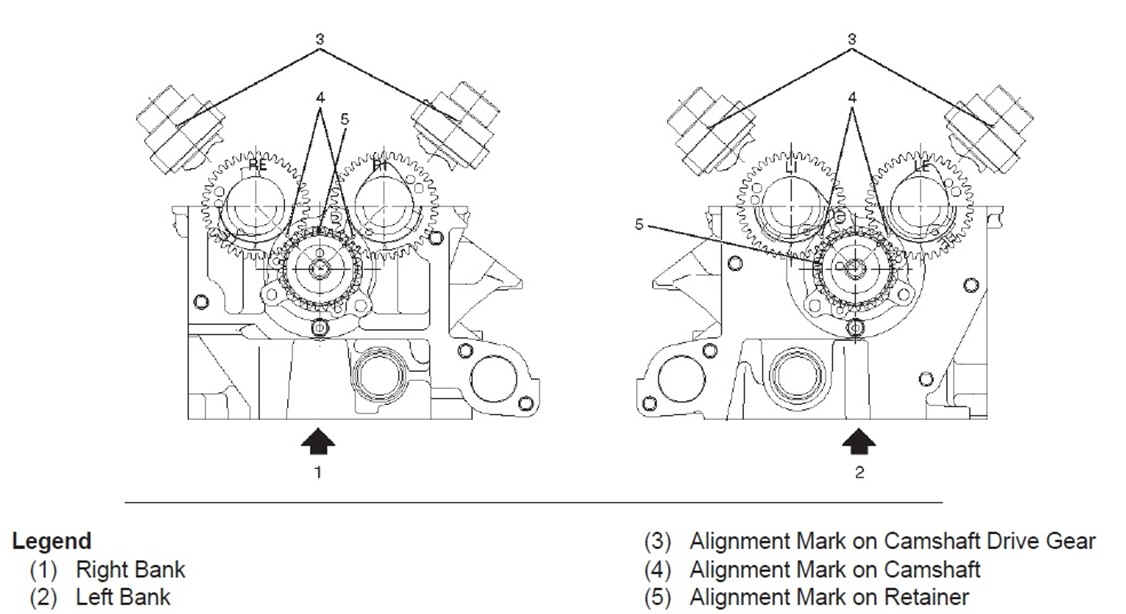

Photo on above shows Camshaft Right & Left Bank Timing Marks and Shows Camshaft Alignment Marks on Drive Gear
  • 5. Install cylinder head cover R. H.- Refer to installation procedure for CYLINDER HEAD R. H. in this manual.
  • 6. Install cylinder head cover L. H. - Refer cylinder head cover L. H. for CYLINDER HEAD L. H. in this manual
  • 7. Install timing - Refer to installation procedure for TIMING BELT in this manual
  • 8. Install crankshaft pulley - Refer to installation procedure for CRANKSHAFT PULLEY in this manual

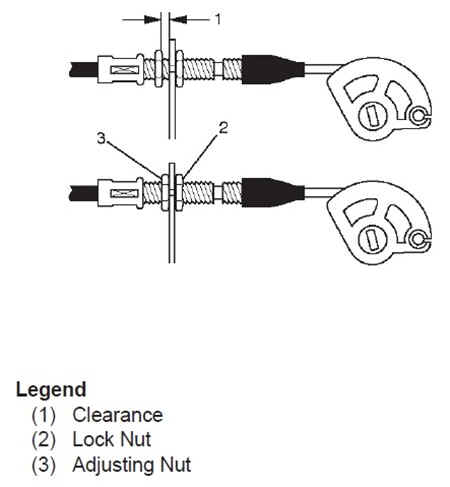

Accelerator pedal cable adjustment
  • 1. Loosen adjusting nut and lock nut.
  • 2. Pull outer cable while closing fully the throttle valve
  • 3. Tighten adjusting nut and lock nut temporarily
  • 4. Loosen adjusting nut by three turns and tighten lock nut.

Then manually operating the throttle valve, make sure that the valve lever returns up to the stopper screw. If it does not reach the stopper screw, repeat from step 1.
