Partly Cleaned	Piston was Hand Cleaned	After Cleaning side by side	Cleaned but replaced

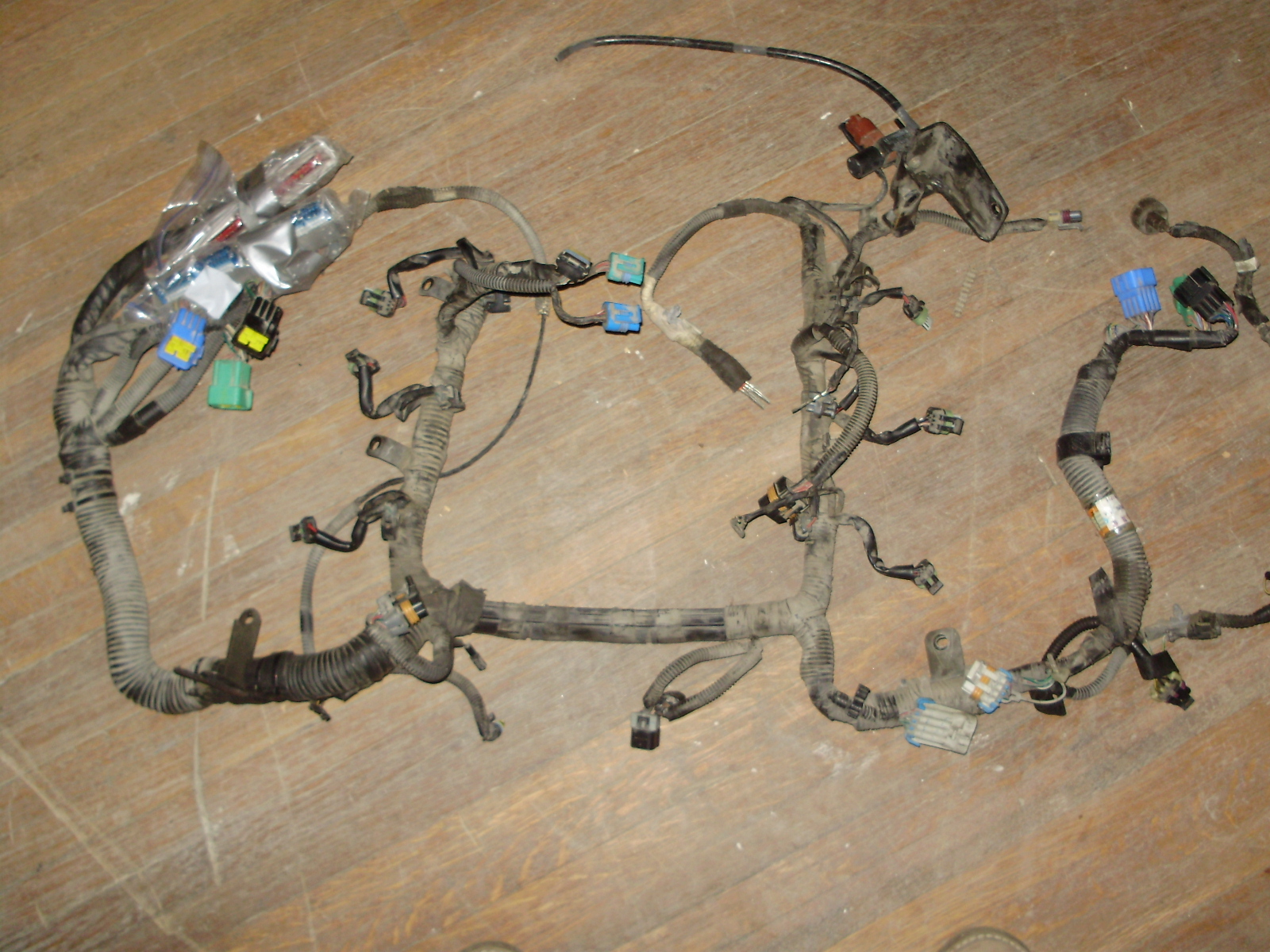

Electrical Harness placed on floor	3.5 Liter,Engine;Electrical Harness Disconnection sensing module harness connectors, and manifold absolute pressure sensor harness connectors from sensors on common chamber Disconnect throttle position sensor harness connectors from throttle body Disconnect three engine harness connectors Disconnect harness connector to transmission (left front side of engine compartment), disconnect shift on the fly harness connector from front side of front axle and remove transmission harness bracket from engine left side. Remove four O2 sensor harness connectors (two each bank) from exhaust front pipe

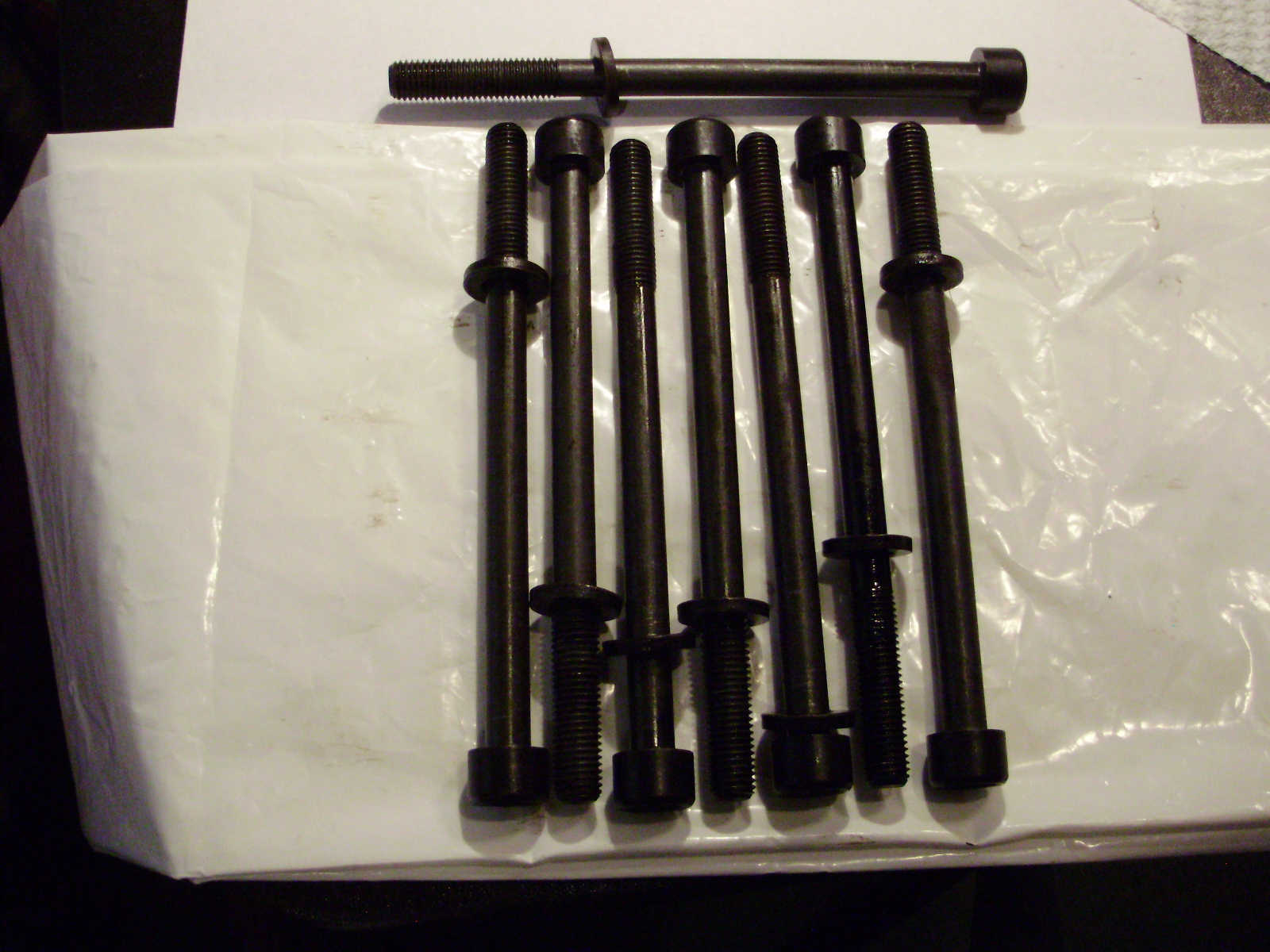

	Head Screws Drivers Side 12mm 1.75mm Pitch Total screw length 116.25mm or 4.5" inches Total thread depth 4.2mm Screw hole size 7/16" NOTE: DO NOT REUSE

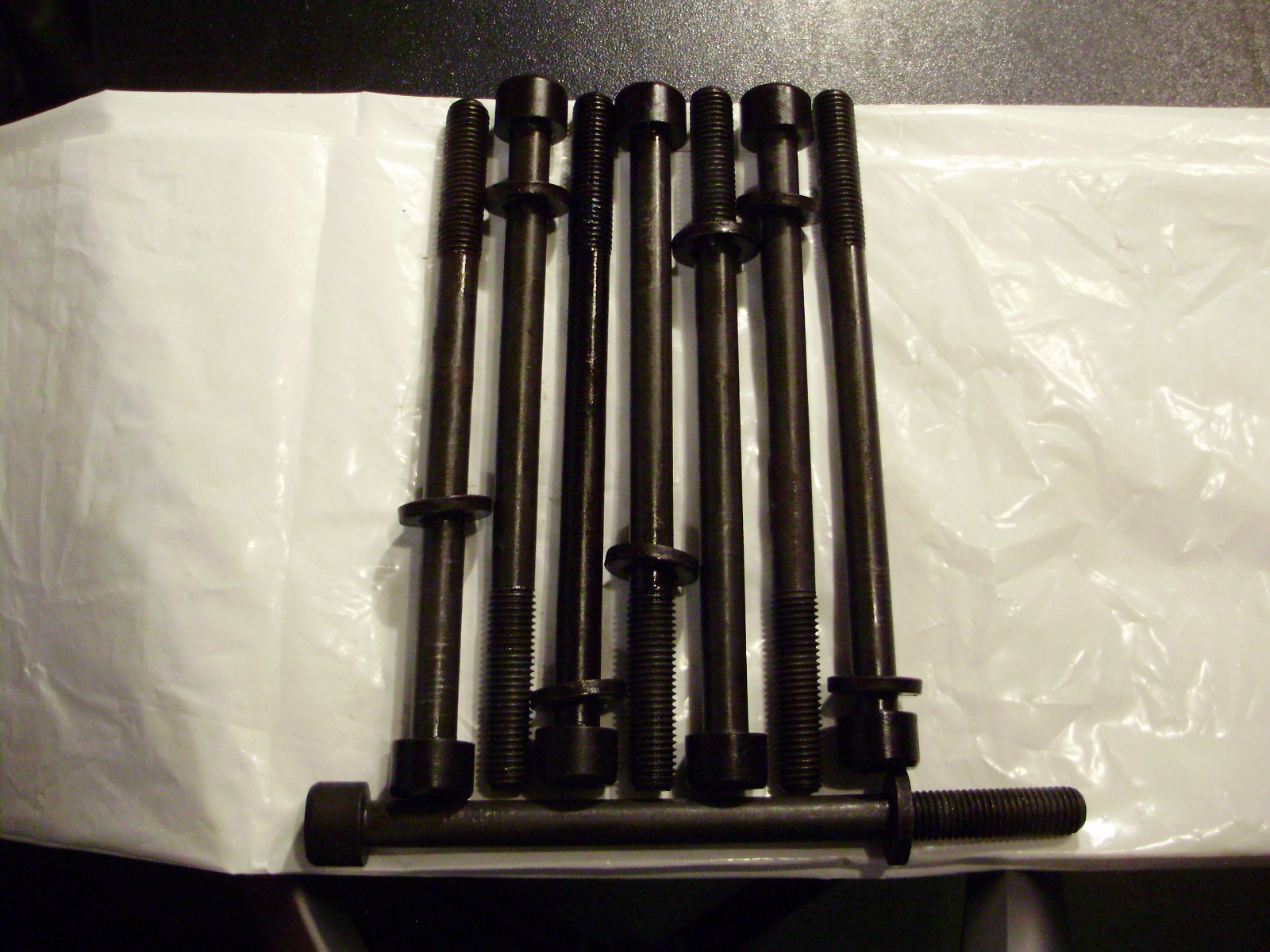

	Head Screws Passengers Side 12mm 1.75mm Pitch Total screw length 116.25mm or 4.5" inches Total thread depth 4.2mm Screw hole size 7/16" NOTE: DO NOT REUSE

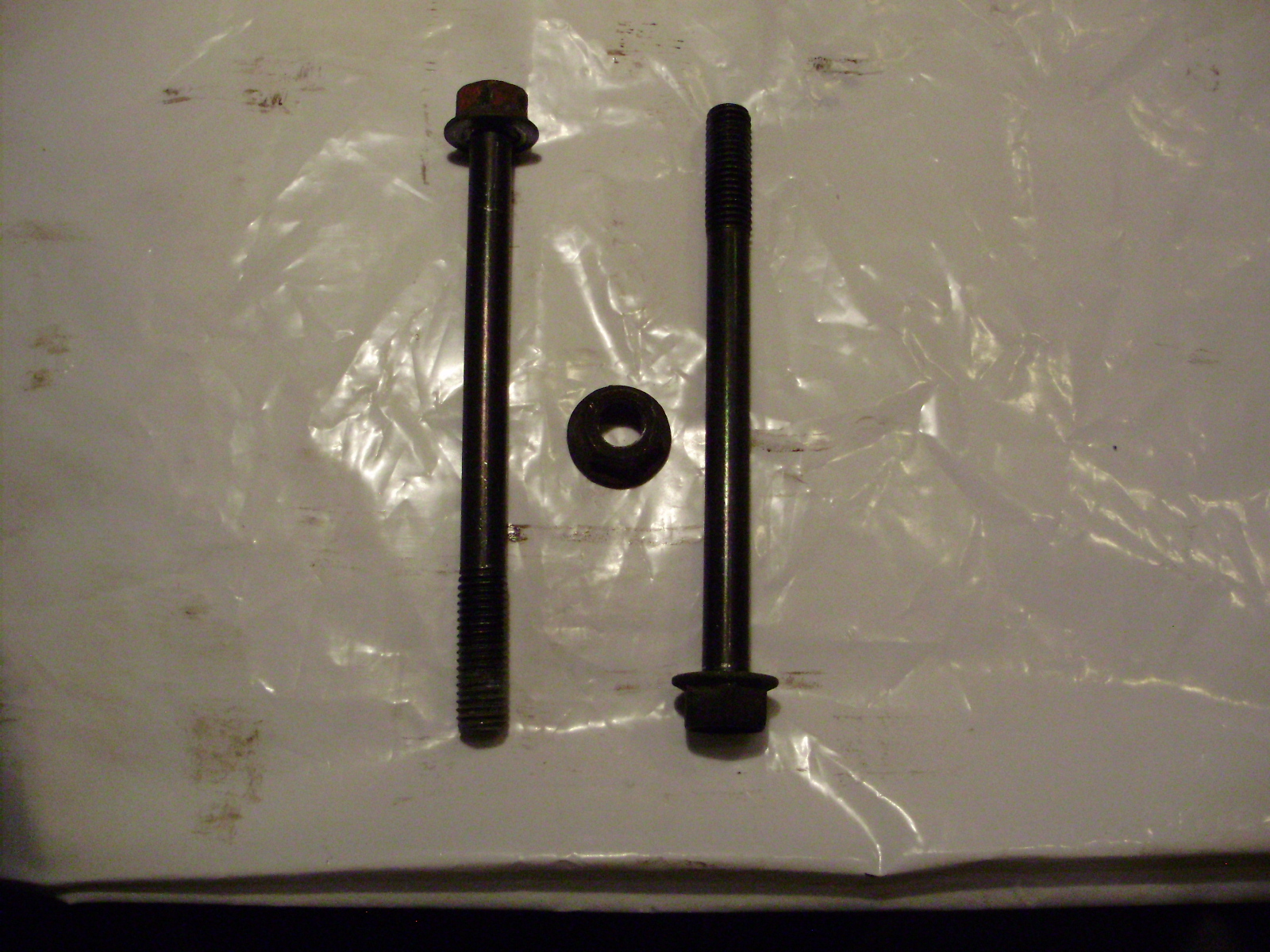

	Rear Cover Fan Pulley-Screws and Bolts Screw Nuts 8mm Total screw length 105.60mm or 4" inches Total thread depth 7.92mm
	Crank Sensor Fits into a hole in the side of the block the crank sensor gear on located on the crankshaft
	Coolant Screws >(3 short) (1 long) Rubber Washer (1) Short screw 8mm 1.25mm pitch: Total length 2mm Total thread depth 1.1mm Screw hole size 5/16" Long screw 8mm 1.25mm pitch Total length 2.5mm Total thread depth 1.6mm Screw hole size 5/16"

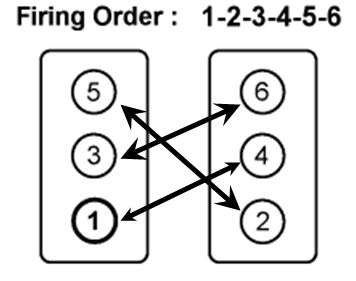

	2001 Isuzu Trooper LS 4WD 3.5 liter DOHC V-6,3.5L Isuzu Engine Companion Firing Order
	Single Screw front of engine Screw size 10mm 1.25mm pitch Length 2.5mm Thread Diameter 1.5mm Screw hole size 10mm
	Water Pump Pulley (side view) Screw size 10mm 1.25mm pitch Total Screw Length 4.8mm Total Thread Depth 2.0mm Screw Spacer Size 12mm Total Screw length 18.21mm Screw hole size 10mm

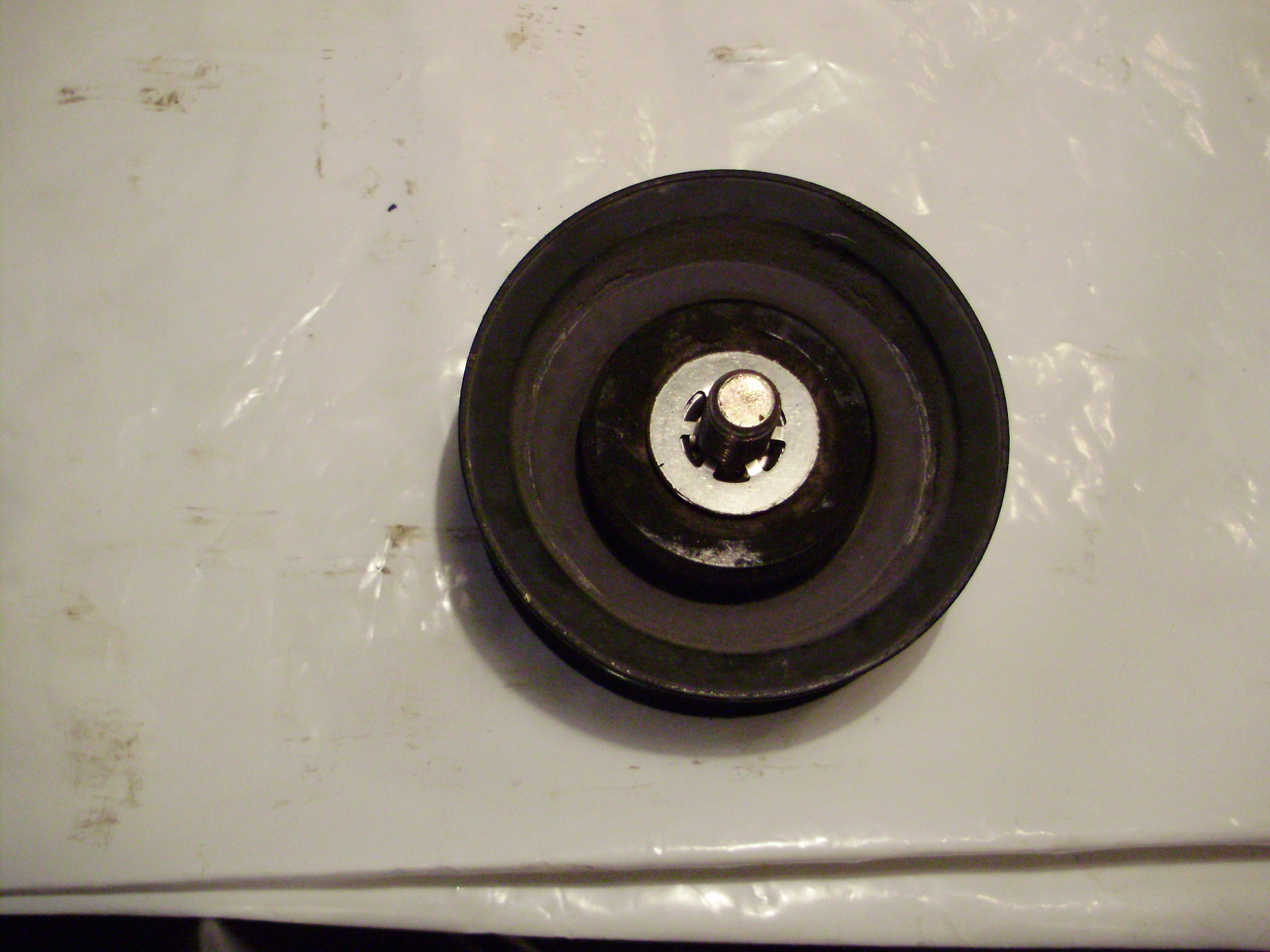

	Water Pump Pulley (bottom view) Screw size 10mm 1.25mm pitch Total Screw Length 4.8mm Total Thread Depth 2.0mm Screw Spacer Size 12mm Total Screw length 18.21mm Screw hole size 10mm
	Water Pump Pulley (top view) Screw size 10mm 1.25mm pitch Total Screw Length 4.8mm Total Thread Depth 2.0mm Screw Spacer Size 12mm Total Screw length 18.21mm Screw hole size 10mm
	Flex Plate Screws to Transmission Screw size 10mm 1.5mm Total length 2.3mm Total Depth 1.5mm Screw hole Size 10mm

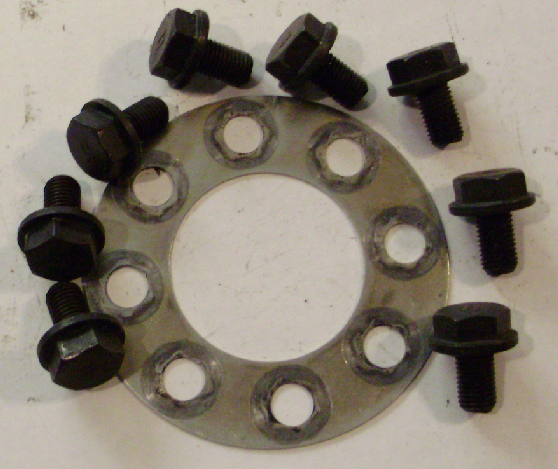

	Flex Plate Screws Total 8 Washer, both connect to Crankshaft Screw size 10mm 1.5mm pitch Total screw length 3mm Total thread depth 1.7mm Screw hole size 10mm

(Example Engine) 2002 Isuzu Trooper V6 3.5L DOHC 4 Wheel Drive - Automatic Transmission
Shows Thread Pitch	Shows Bolt Depth
(Measure each Bolt, Screw, and Stud, use a pitch gage as well)
Oil Pan
	Upper Oil Pan Screws Total 18 screws-2 nuts Screw size 16mm 1.0mm pitch Total screw length 3.3mm Total tread depth 2.8mm Total hole size 6mm
	Lower Oil Pan Screws Total 12 screws Screw size 8mm 1.25mm pitch Total screw length 2.5mm Total thread depth 1.8mm Total hole size 8mm
Transmission Screws and Bolts
	Transmission screws and bolts Transmission screw (longest) 12mm 1.25mm pitch Total screw length 8mm Total thread depth 3.5mm Total hole size 12mm Transmission bolt (nut) 12mm 1.25mm pitch Total hole size 12mm Nipple end screw 12mm 1.25mm pitch Total length 5mm Total depth 2.8mm Total hole size 10mm Transmission screw (smallest) 12mm 1.75 pitch Total length 3.3mm Total thread depth 2.4mm Total hole size 8mm Transmission screw (next size up) 12mm 1.75mm pitch Total length 5mm Total thread depth 4mm Total hole size 12mm Transmission (next size up) 12mm 1.75mml Total length 6mm Total thread depth 3.5mm Total hole size 12mm Transmission (next size up) 12mm 1.75mm pitch Total length 6mm Total thread depth 3.5mm Total hole size 12mm
Main Bearing Top Cap Screws
	Main Bearing Top Cap Screws (8 total) Screw size 12mm 1.75mm pitch Total length 15.2mm Total thread depth 5mm Screw hole size 12mm
	Main Bearing Side Screws Long 10mm 1.5mm pitch length 9mm Total thread depth 8mm Thickest 1.5mm 1.5mm pitch length 3.5mm Total thread depth 2.5mm Shortest 8mm 1.25mm length 2.7 Total thread depth 2mm
	Oil Gallery Tube Screws Long 10mm 1.5mm pitch length 9mm Total thread depth 8mm Thick 10mm 1.5mm pitch length 9mm Total thread depth 2.5mm Short 8mm 1.25mm pitch length 2.7mm Total thread depth 2mm
	Idle Pulley Assembly Screw size 10mm 1.5mm pitch Thread depth 1.8mm Head 10mm Screw hole size 8mm Space depth 5mm
t	Thermostat Assembly (total 4) Screw size 8mm 1.25mm pitch Total length 2mm Total thread depth 1.2mm Screw hole size 5/16"
	Air Conditioner Line Screw Screw size 8mm 1.25mm pitch Total length 3.08mm Total depth 3.00 mm Total hole size 8mm

How (WARD) Can Help Fix Your Car
(Example Engine) 2002 Isuzu Trooper V6 3.5L DOHC 4 Wheel Drive - Automatic Transmission
	Extra Nut Nut size 8mm 1.25 pitch

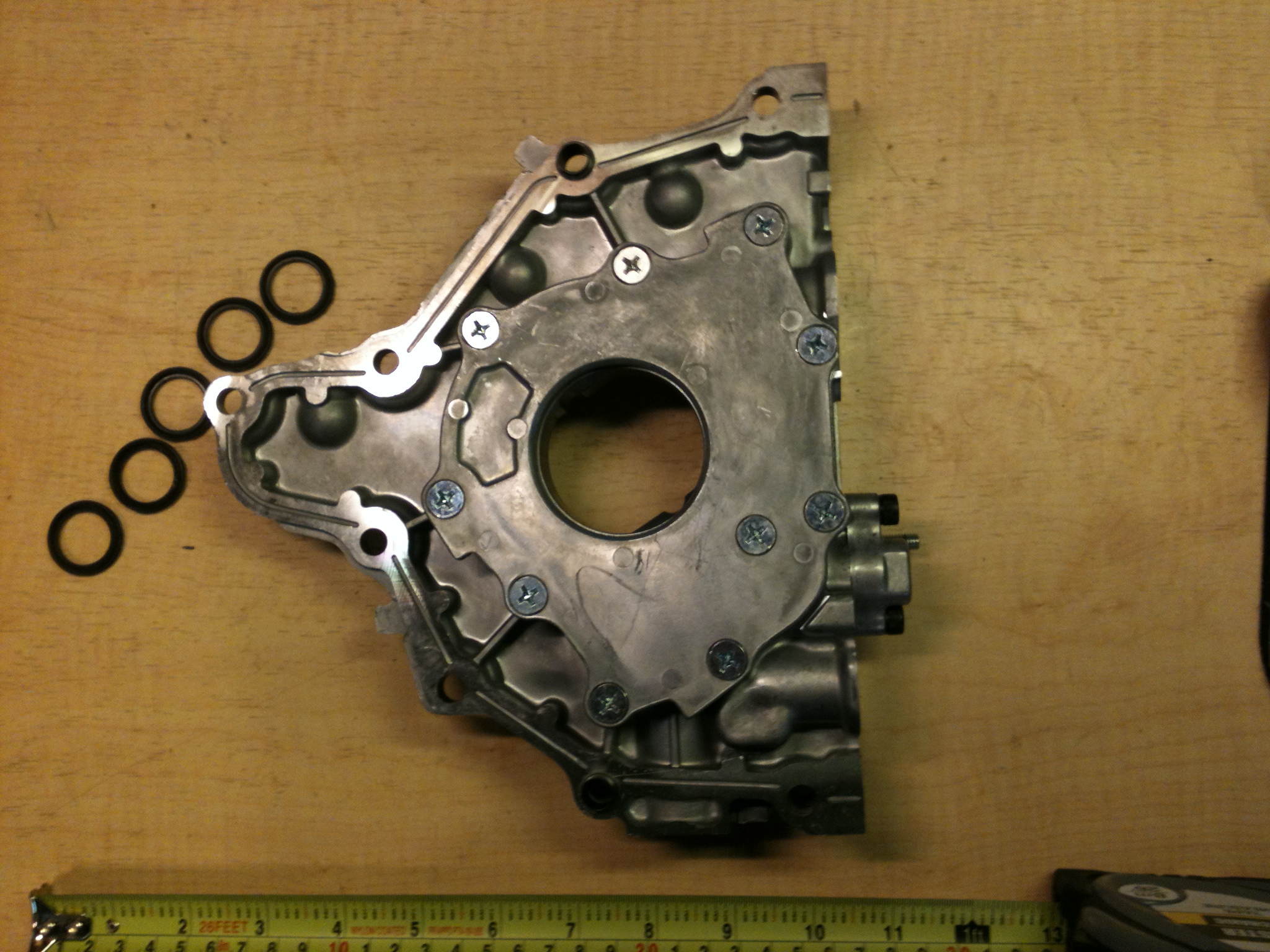

	Oil Pump View

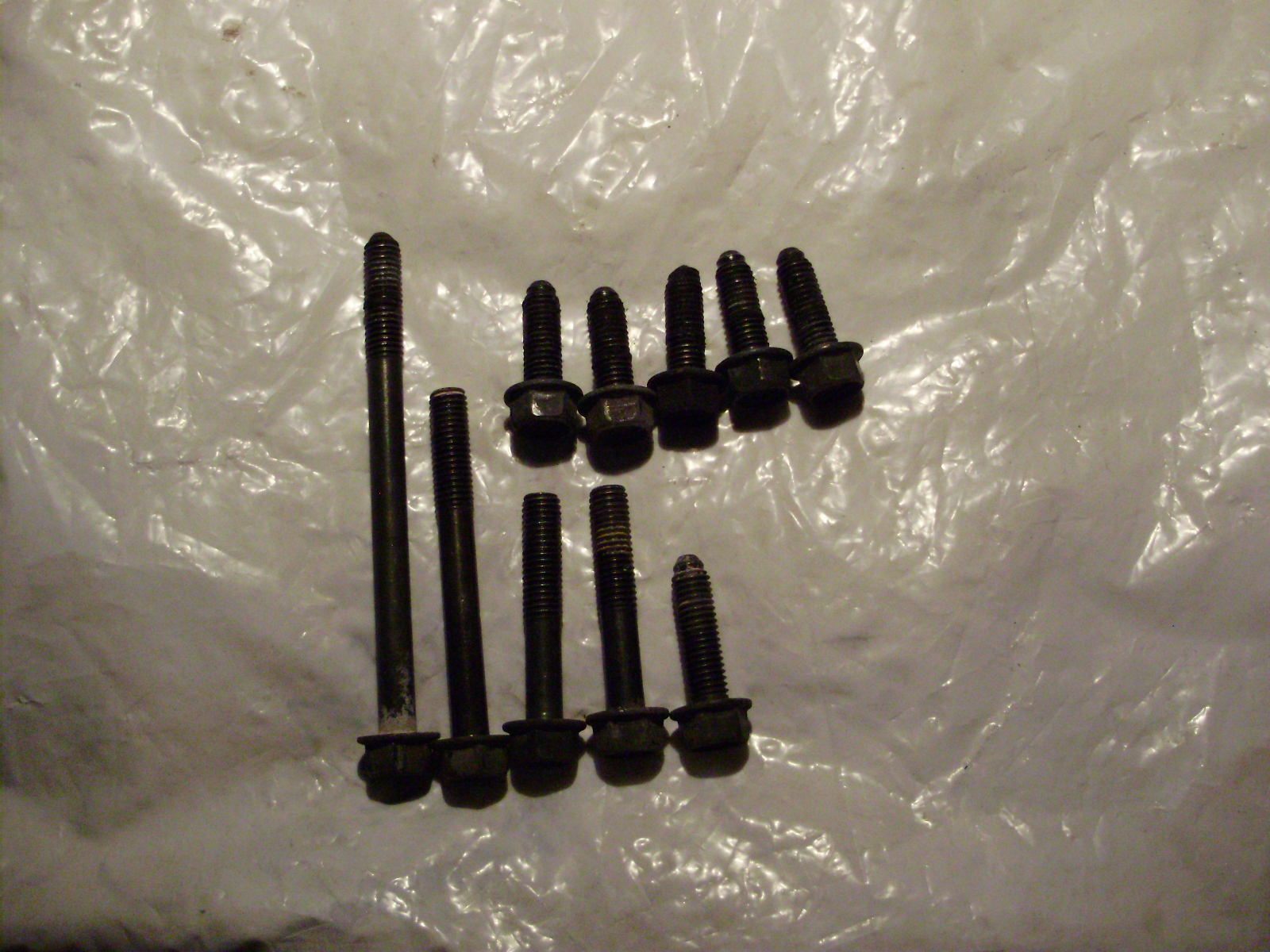

	Oil Pump Housing Screws (total 10 screws) Long screw, 8mm 1.25mm pitch, length 11mm, thread depth 2.7mm, Hole size 8mm Medium Long screw, 8mm 1.25mm pitch, length 7.8mm, thread depth 2.7mm, Hole size 8mmm Medium short screw 8mm 1.25mm pitch, length 5.7mm, Thread depth 3mm, Hole size 8mm Short medium screw 8mm 1.25mm pitch, length 3.3mm, Thread depth 2.5mm, Hole size 8mm
	Front Housing (Total 4) 2 long/slender 8mm 1.25mm pitch, length 9.8mm, Thread depth, Hole size 8mm 2 long/thick screws, 8mm 1.5mm pitch, length 9mm, Thread depth 3mm, Hole size 10mm 1screw 8mm 1.25mm pitch, length 4.5mm-4.7mm, Thread depth 2mm/2mm, Hole size 8mm/8mm
	Small Trust Plate or Sensor Plate (solid) 2 screws Pitch 2mm 1.5mm pitch, Hole size 6mm
	Front of Engine (2) Screw size 8mm 1.25mm pitch, length 4.8mm, Thread depth 4mm, Hole size 8mm
	Oil Gallery Tube Screws (3) 2 Screws: 6mm 1.0mm pitch, length 4mm, Thread depth 2.5mm, Screw hole size 6mm 1 Screws: 8mm 1.25mm pitch, length 2.5mm, Thread depth 1.5mm, Screw hole size 8mm
	Valve Cover Screws (7 Total) Screw size 6mm 1.0 pitch, length 3mm, Screw thread depth 100, Screw hole size 6mm 1 Rubber Washer 6mm 1.0 mm pitch, length 3mm, Thread depth 1mm, Thread hole size 6mm
	Crankshaft Damper Pulley Screw and lock key Screw size 16 mm 1.5 mm Pitch Length 5.5 mm Thread depth 3 mm Screw hole size 16 mm
	Manifold bracket and screws/bolts (total 4 each) Screws 8 mm 1.25 mm Pitch Length 15.8 mm Thread depth 3 mm Screw hole size 8 mm Bolts (total 4) screws:8 mm, 1.25 mm Pitch, length 6.8 mm Thread depth 3.5 mm, screw hole size 8 mm Nuts (total 4) 8 mm 1.25 mm Pitch, Length n/a, Thread hole size 8 mm
